Lighting System

The lighting system calculates and propagates light through the world using a flood-fill algorithm with support for colored block light and skylight.

Package Location

com.hypixel.hytale.server.core.universe.world.lighting

Overview

Hytale uses a 4-channel lighting system:

• Red block light (0-15)
• Green block light (0-15)
• Blue block light (0-15)
• Skylight (0-15)

Light is calculated per chunk section (32x32x32 blocks) using flood-fill propagation.

Light Channels

Channel	Bits	Range	Source
Red	0-3	0-15	Block light sources
Green	4-7	0-15	Block light sources
Blue	8-11	0-15	Block light sources
Skylight	12-15	0-15	Sky exposure

Combined format: 16-bit short value

Core Classes

ChunkLightingManager

Main manager running on a dedicated daemon thread per world:

package com.hypixel.hytale.server.core.universe.world.lighting;

public class ChunkLightingManager implements Runnable {
    public ChunkLightingManager(World world);

    public World getWorld();

    public void setLightCalculation(LightCalculation lightCalculation);
    public LightCalculation getLightCalculation();

    public void addToQueue(Vector3i chunkPosition);

    public void init(WorldChunk worldChunk);

    public boolean isQueued(int chunkX, int chunkZ);
    public boolean isQueued(Vector3i chunkPosition);
    public int getQueueSize();

    public boolean invalidateLightAtBlock(
        WorldChunk worldChunk,
        int blockX, int blockY, int blockZ,
        BlockType blockType,
        int oldHeight, int newHeight
    );

    public boolean invalidateLightInChunk(WorldChunk worldChunk);

    public boolean invalidateLightInChunkSection(
        WorldChunk worldChunk, int sectionIndex
    );

    public boolean invalidateLightInChunkSections(
        WorldChunk worldChunk,
        int sectionIndexFrom, int sectionIndexTo
    );

    public void invalidateLoadedChunks();
}

LightCalculation

Interface for pluggable light calculation algorithms:

package com.hypixel.hytale.server.core.universe.world.lighting;

public interface LightCalculation {
    void init(WorldChunk worldChunk);

    CalculationResult calculateLight(Vector3i chunkPosition);

    boolean invalidateLightAtBlock(
        WorldChunk worldChunk,
        int blockX, int blockY, int blockZ,
        BlockType blockType,
        int oldHeight, int newHeight
    );

    boolean invalidateLightInChunkSections(
        WorldChunk worldChunk,
        int sectionIndexFrom, int sectionIndexTo
    );
}

CalculationResult

package com.hypixel.hytale.server.core.universe.world.lighting;

public enum CalculationResult {
    NOT_LOADED,
    DONE,
    INVALIDATED,
    WAITING_FOR_NEIGHBOUR
}

FloodLightCalculation

Default implementation using flood-fill algorithm:

package com.hypixel.hytale.server.core.universe.world.lighting;

public class FloodLightCalculation implements LightCalculation {
    public FloodLightCalculation(ChunkLightingManager chunkLightingManager);
}

The flood calculation runs in two phases:

1. Local light — block light sources within the section
2. Global light — skylight propagation from section borders

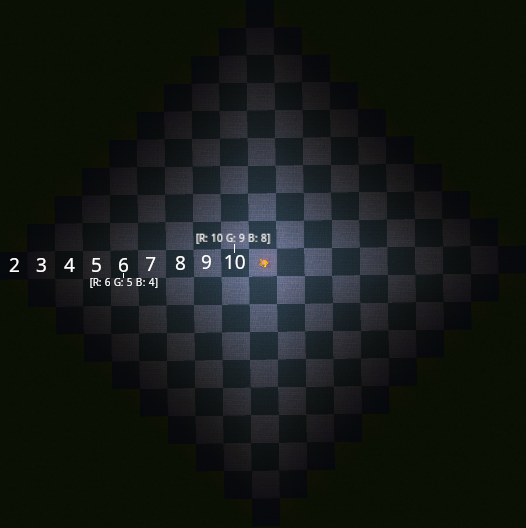

Propagation Rules:

Propagation Type	Light Reduction
Direct neighbor (6 faces)	-1
Edge connection (12 edges)	-2
Corner connection (8 corners)	-3
Through Semitransparent/Cutout	Additional -1
Through Solid	Blocked

FullBrightLightCalculation

Debug wrapper that sets all skylight to maximum:

package com.hypixel.hytale.server.core.universe.world.lighting;

public class FullBrightLightCalculation implements LightCalculation {
    public FullBrightLightCalculation(
        ChunkLightingManager chunkLightingManager,
        LightCalculation delegate
    );

    public void setFullBright(WorldChunk worldChunk, int chunkY);
}

Light Data Storage

ChunkLightData

Immutable light storage for chunk sections, stored as an octree:

package com.hypixel.hytale.server.core.universe.world.chunk.section;

public class ChunkLightData {
    public static final int TREE_SIZE = 8;
    public static final byte MAX_VALUE = 15;
    public static final int CHANNEL_COUNT = 4;

    public static final int RED_CHANNEL = 0;
    public static final int GREEN_CHANNEL = 1;
    public static final int BLUE_CHANNEL = 2;
    public static final int SKY_CHANNEL = 3;

    public byte getRedBlockLight(int index);
    public byte getRedBlockLight(int x, int y, int z);
    public byte getGreenBlockLight(int index);
    public byte getGreenBlockLight(int x, int y, int z);
    public byte getBlueBlockLight(int index);
    public byte getBlueBlockLight(int x, int y, int z);
    public byte getSkyLight(int index);
    public byte getSkyLight(int x, int y, int z);

    public byte getBlockLightIntensity(int index);
    public byte getBlockLightIntensity(int x, int y, int z);

    public short getBlockLight(int index);
    public short getBlockLight(int x, int y, int z);

    public byte getLight(int index, int channel);

    public short getLightRaw(int index);
    public short getLightRaw(int x, int y, int z);

    public static short combineLightValues(
        byte red, byte green, byte blue, byte sky
    );
    public static short combineLightValues(
        byte red, byte green, byte blue
    );
    public static byte getLightValue(short value, int channel);
}

ChunkLightDataBuilder

Mutable builder for light calculation (extends ChunkLightData):

public class ChunkLightDataBuilder extends ChunkLightData {
    public ChunkLightDataBuilder(short changeId);
    public ChunkLightDataBuilder(ChunkLightData lightData, short changeId);

    public void setBlockLight(int index, byte red, byte green, byte blue);
    public void setBlockLight(int x, int y, int z, byte red, byte green, byte blue);

    public void setLight(int index, int channel, byte value);

    public void setSkyLight(int index, byte light);
    public void setSkyLight(int x, int y, int z, byte light);

    public void setLightRaw(int index, short value);

    public ChunkLightData build();
}

Block Light Sources

Blocks define their light emission in their block type definition:

public class BlockType {
    public ColorLight getLight();
    public Opacity getOpacity();
}

Opacity

package com.hypixel.hytale.protocol;

public enum Opacity {
    Solid,
    Semitransparent,
    Cutout,
    Transparent
}

ColorLight

Light color and radius definition:

package com.hypixel.hytale.protocol;

public class ColorLight {
    public byte radius;
    public byte red;
    public byte green;
    public byte blue;

    public ColorLight(byte radius, byte red, byte green, byte blue);
}

Usage Examples

Invalidating Light at Block

import com.hypixel.hytale.server.core.universe.world.lighting.ChunkLightingManager;

World world = Universe.get().getDefaultWorld();
ChunkLightingManager chunkLighting = world.getChunkLighting();

WorldChunk chunk = world.getChunkIfInMemory(
    ChunkUtil.indexChunkFromBlock(blockX, blockZ)
);

chunkLighting.invalidateLightAtBlock(
    chunk, blockX, blockY, blockZ, blockType, oldHeight, newHeight
);

Reading Light Values

import com.hypixel.hytale.server.core.universe.world.chunk.section.ChunkLightData;

WorldChunk chunk = world.getChunkIfInMemory(
    ChunkUtil.indexChunkFromBlock(position.x, position.z)
);
int sectionIndex = position.y >> 5;
BlockSection section = chunk.getBlockChunk().getSectionAtIndex(sectionIndex);
ChunkLightData lightData = section.getGlobalLight();

int localX = position.x & 31;
int localY = position.y & 31;
int localZ = position.z & 31;
int index = ChunkUtil.indexBlock(localX, localY, localZ);

byte red = lightData.getRedBlockLight(index);
byte green = lightData.getGreenBlockLight(index);
byte blue = lightData.getBlueBlockLight(index);
byte sky = lightData.getSkyLight(index);

byte blockLight = lightData.getBlockLightIntensity(index);

short rawLight = lightData.getLightRaw(index);

Switching Light Calculation Mode

import com.hypixel.hytale.server.core.universe.world.lighting.*;

ChunkLightingManager chunkLighting = world.getChunkLighting();
LightCalculation current = chunkLighting.getLightCalculation();
chunkLighting.setLightCalculation(
    new FullBrightLightCalculation(chunkLighting, current)
);

chunkLighting.invalidateLoadedChunks();

Light Propagation Algorithm

Local Light (Block Light)

1. Find all light-emitting blocks in section
2. Add their positions to propagation queue
3. For each position in queue:
   • Check 6 direct neighbors
   • If neighbor has lower light, update and queue
   • Apply opacity reduction
4. Continue until queue is empty

Global Light (Skylight)

1. Start from section borders
2. Three propagation phases:
   • Sides: Direct neighbors (-1 reduction)
   • Edges: Edge connections (-2 reduction)
   • Corners: Corner connections (-3 reduction)
3. Check neighbor chunk sections if needed
4. Wait for neighbors if not yet calculated

Commands

Built-in lighting commands:

Command	Description
/lighting calculation flood	Switch to flood algorithm
/lighting calculation fullbright	Enable full brightness
/lighting invalidate	Recalculate all loaded chunks
/lighting invalidate --one	Recalculate player’s chunk section
/lighting info	Show lighting queue size and calculation type
/lighting info --detail	Show per-section local/global light counts

Performance Considerations

1. Async Processing: Light calculation runs on dedicated thread
2. Queue-based: Changes are queued and processed in order
3. Section Granularity: Updates are per 32x32x32 section
4. Neighbor Dependencies: Sections wait for neighbors before completing
5. Octree Storage: Compact representation reduces memory
