Channeling Staff Tutorial

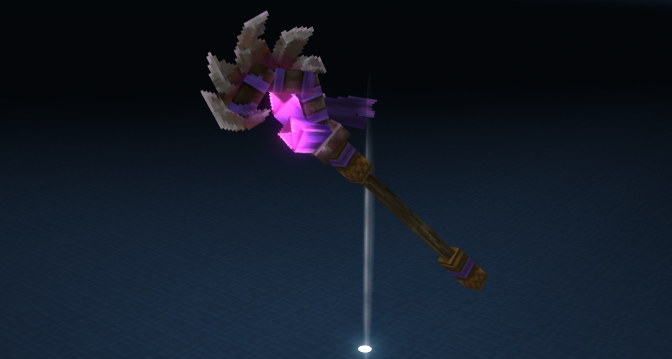

Final Channeling Staff weapon in-game

In this tutorial, you’ll create a magical channeling staff that demonstrates complex interaction patterns including multi-tier charging, forking, damage cancellation, and visual feedback.

What We’re Building

Section titled “What We’re Building”
Multi-Tier ChargingFork ActionsDamage CancellationVisual Feedback

Final Result:

  • A magical staff with 3 charge tiers (0.5s, 1.5s, 3.0s)
  • Secondary “quick cast” fork while channeling
  • Visual/audio feedback at each tier
  • Damage cancellation if hit while channeling
  • Progress bar during charge

Prerequisites

Section titled “Prerequisites”

Before starting, you should understand:

File Structure

Section titled “File Structure”
  • Directorymy-plugin/
    • manifest.json
    • Directoryassets/
      • DirectoryServer/
        • DirectoryItem/
          • DirectoryItems/
            • DirectoryWeapon/
              • DirectoryStaff/
                • Weapon_Staff_Channeling.json
          • DirectoryInteractions/
            • DirectoryStaff/
              • Staff_Channeling_Primary.json
              • Staff_Channeling_Tier1.json
              • Staff_Channeling_Tier2.json
              • Staff_Channeling_Tier3.json
              • Staff_Channeling_QuickCast.json
              • Staff_Channeling_Failed.json
          • DirectoryRootInteractions/
            • DirectoryStaff/
              • Root_Staff_Channeling_Primary.json
              • Root_Staff_Channeling_QuickCast.json

Part 1: Create the RootInteraction

Section titled “Part 1: Create the RootInteraction”

The RootInteraction is the entry point that items reference.

  1. Create the folder structure for your staff interactions

  2. Create the root interaction file

Root_Staff_Channeling_Primary.json
{
  "RequireNewClick": true,
  "ClickQueuingTimeout": 0.3,
  "Cooldown": {
    "Cooldown": 0.5,
    "Id": "Staff_Channeling"
  },
  "Interactions": [
    "Staff_Channeling_Primary"
  ]
}
FieldDescription
RequireNewClickMust click again, not hold
ClickQueuingTimeoutWindow to queue next click
IdCooldown identifier shared across staff abilities

Part 2: Build the Charging Interaction

Section titled “Part 2: Build the Charging Interaction”

This is the core of our staff - the charging mechanic with three tiers.

Staff_Channeling_Primary.json
{
  "Type": "Charging",
  "DisplayProgress": true,
  "FailOnDamage": true,
  "MouseSensitivityAdjustmentTarget": 0.5,
  "MouseSensitivityAdjustmentDuration": 0.3,
  "Effects": {
    "ItemAnimationId": "Channel",
    "WorldSoundEventId": "SFX_Staff_Charge_Loop"
  },
  "Delay": {
    "MinDelay": 0.1,
    "MaxDelay": 0.4,
    "MinHealth": 0.2,
    "MaxHealth": 0.8
  },
  "Next": {
    "0.5": "Staff_Channeling_Tier1",
    "1.5": "Staff_Channeling_Tier2",
    "3.0": "Staff_Channeling_Tier3"
  },
  "Forks": {
    "Secondary": "Root_Staff_Channeling_QuickCast"
  },
  "Failed": "Staff_Channeling_Failed"
}

Understanding the Configuration

Section titled “Understanding the Configuration”

The Next field maps charge duration to interactions:

DurationTierEffect
0.5sTier 1Quick spark projectile
1.5sTier 2AOE burst damage
3.0sTier 3Powerful beam with knockback

When released, the system picks the highest tier reached.

Part 3: Implement Tier Effects

Section titled “Part 3: Implement Tier Effects”

Each tier has its own interaction chain for unique effects.

Quick projectile attack for instant release:

Staff_Channeling_Tier1.json
{
  "Type": "Serial",
  "Interactions": [
    {
      "Type": "Simple",
      "RunTime": 0.15,
      "Effects": {
        "ItemAnimationId": "Cast_Quick",
        "WorldSoundEventId": "SFX_Staff_Cast_Light",
        "WorldParticles": [
          { "SystemId": "Magic_Spark_Cast" }
        ]
      }
    },
    {
      "Type": "LaunchProjectile",
      "ProjectileId": "Projectile_Magic_Spark"
    }
  ]
}

Part 4: Add the Quick Cast Fork

Section titled “Part 4: Add the Quick Cast Fork”

Create a secondary spell that can be cast while channeling:

  1. Create the RootInteraction for the quick cast

  2. Create the quick cast interaction

Root_Staff_Channeling_QuickCast.json
{
  "RequireNewClick": true,
  "Cooldown": {
    "Cooldown": 1.0,
    "Id": "Staff_QuickCast"
  },
  "Interactions": [
    "Staff_Channeling_QuickCast"
  ]
}
Staff_Channeling_QuickCast.json
{
  "Type": "Serial",
  "Interactions": [
    {
      "Type": "Simple",
      "RunTime": 0.1,
      "Effects": {
        "ItemAnimationId": "QuickCast",
        "WorldSoundEventId": "SFX_Staff_QuickCast",
        "WorldParticles": [
          { "SystemId": "Magic_Shield_Flash" }
        ]
      }
    },
    {
      "Type": "ApplyEffect",
      "EffectId": "Magic_Shield",
      "Entity": "User"
    }
  ]
}

Part 5: Create the Failed Interaction

Section titled “Part 5: Create the Failed Interaction”

When charge is interrupted by damage:

Staff_Channeling_Failed.json
{
  "Type": "Serial",
  "Interactions": [
    {
      "Type": "Simple",
      "RunTime": 0.3,
      "Effects": {
        "ItemAnimationId": "Channel_Fail",
        "WorldSoundEventId": "SFX_Staff_Fizzle",
        "WorldParticles": [
          { "SystemId": "Magic_Fizzle" }
        ],
        "CameraEffect": "Stagger_Light"
      }
    },
    {
      "Type": "ApplyEffect",
      "EffectId": "Stagger_Brief",
      "Entity": "User"
    }
  ]
}

Part 6: Create the Item Definition

Section titled “Part 6: Create the Item Definition”

Now tie it all together with the item:

Weapon_Staff_Channeling.json
{
  "Parent": "Template_Weapon_Staff",
  "TranslationProperties": {
    "Name": "myplugin.items.staff_channeling.name",
    "Lore": "myplugin.items.staff_channeling.lore"
  },
  "Model": "MyPlugin/Weapons/Staff_Channeling.blockymodel",
  "Texture": "MyPlugin/Weapons/Staff_Channeling_Texture.png",
  "Icon": "MyPlugin/Icons/Staff_Channeling.png",
  "Quality": "Rare",
  "ItemLevel": 25,
  "MaxDurability": 150,
  "DurabilityLossOnHit": 0.1,
  "Interactions": {
    "Primary": "Root_Staff_Channeling_Primary"
  },
  "ItemSoundSetId": "ISS_Weapons_Staff"
}

Part 7: Testing & Verification

Section titled “Part 7: Testing & Verification”

  1. Build your plugin and install it on a test server

  2. Give yourself the staff with /give Weapon_Staff_Channeling

  3. Test each tier by holding and releasing at different times

  4. Test the quick cast by right-clicking while charging

  5. Test damage cancellation by having another player hit you while charging

Test Checklist

Section titled “Test Checklist”
  • Tier 1 (0.5s release) fires spark projectile
  • Tier 2 (1.5s release) creates AOE burst
  • Tier 3 (3.0s release) fires powerful beam
  • Quick cast (right-click during charge) applies shield
  • Getting hit cancels charge and plays fizzle effect
  • Progress bar shows during charge
  • All sounds and particles trigger correctly

Complete File Reference

Section titled “Complete File Reference”
Root_Staff_Channeling_Primary.json
{
  "RequireNewClick": true,
  "ClickQueuingTimeout": 0.3,
  "Cooldown": {
    "Cooldown": 0.5,
    "Id": "Staff_Channeling"
  },
  "Interactions": ["Staff_Channeling_Primary"]
}
Root_Staff_Channeling_QuickCast.json
{
  "RequireNewClick": true,
  "Cooldown": {
    "Cooldown": 1.0,
    "Id": "Staff_QuickCast"
  },
  "Interactions": ["Staff_Channeling_QuickCast"]
}

Next Steps & Challenges

Section titled “Next Steps & Challenges”
Add More Tiers Try adding a 4th tier at 5.0s for an ultimate attack
Combo Integration Add ChainingInteraction for staff melee combos
Status Effects Make tier effects apply debuffs to enemies
Java Enhancement Add custom damage scaling based on charge time
