Create a Custom Weapon

This tutorial walks you through creating a complete custom weapon for Hytale, from designing the model in Blockbench to defining the item in JSON and integrating it into your plugin.

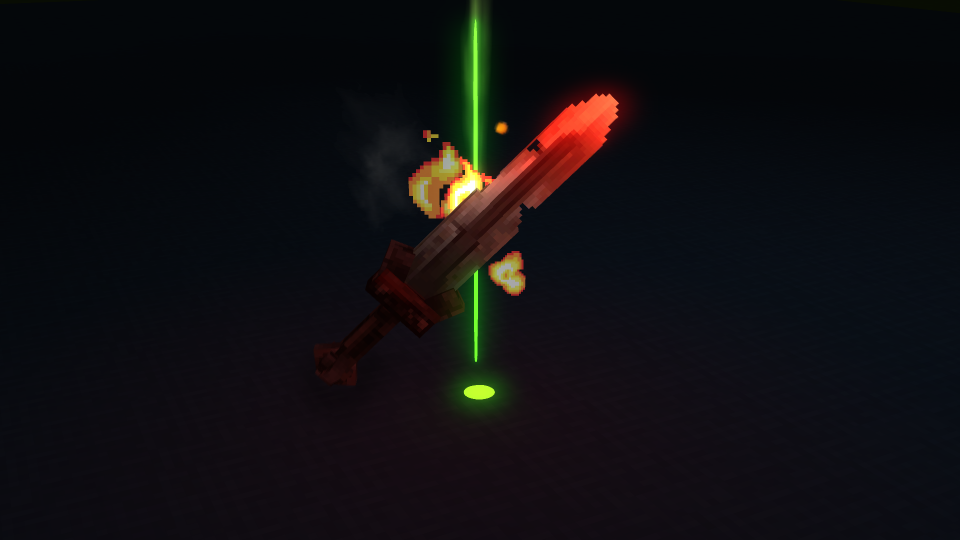

What You’ll Create

By the end of this tutorial, you’ll have:

• A custom sword model created in Blockbench
• A texture for the weapon
• A complete item definition with damage values
• A crafting recipe
• The weapon integrated into a plugin

Prerequisites

Before starting, ensure you have:

• Blockbench installed with the Hytale plugin
• A basic understanding of JSON
• A Hytale server plugin project set up
• Familiarity with the Item System

Part 1: Plan Your Weapon

1. Choose a weapon type

   We’ll create a custom sword called “Flame Sword” that inherits from the standard sword template. This gives us access to all sword attack patterns automatically.

2. Define the stats

   Plan your weapon’s characteristics:

   • Quality: Rare (blue tier)
   • Item Level: 35
   • Base Swing Damage: ~12 Physical (stronger than iron)
   • Durability: 150
   • Special: Fire particle effects

3. Sketch the design

   Before modeling, sketch your sword design. Consider:

   • Blade shape and length
   • Handle design
   • Guard style
   • Any special visual elements (flames, glowing parts)

Part 2: Create the Model

1. Open Blockbench and create a new Hytale Model

   • Go to File > New > Hytale Model
   • Name: Flame_Sword
   • Use scale: 32px = 1 block (standard for items)

2. Create the blade

   • Add a new cube for the blade
   • Set dimensions to approximately:
     • Width: 2px
     • Height: 24px
     • Depth: 4px
   • Position it extending upward from the origin

3. Create the guard

   • Add another cube for the crossguard
   • Dimensions: 8px x 2px x 4px
   • Position below the blade

4. Create the handle

   • Add a cube for the grip
   • Dimensions: 2px x 8px x 2px
   • Position below the guard

5. Set up bones for animation

   • Create a bone named Handle at the grip position
   • Parent all geometry to this bone
   • This allows the sword to animate correctly when held

6. Verify constraints

   • Check node count (should be well under 255)
   • Ensure all geometry is cubes
   • Verify bone hierarchy is correct

Tip

Study existing sword models in Assets/Common/Items/Weapons/Sword/ for reference on proportions and bone setup.

Part 3: Create the Texture

1. Create a texture template

   • In Blockbench, go to the Paint tab
   • Create a new texture: 64x64 pixels (multiple of 32)

2. Paint the blade

   • Use a gradient from orange to red for a flame effect
   • Add bright yellow highlights along the edge
   • Consider adding subtle glow patterns

3. Paint the handle and guard

   • Use dark metals (gray/black) for contrast
   • Add gold or brass accents on the guard
   • Wrap texture on the handle for grip detail

4. Export the texture

   • Save as Flame_Sword_Texture.png
   • Ensure dimensions are exact (64x64)

Part 4: Export the Model

1. Export the model

   • Go to File > Export > Export Hytale Model
   • Save as Flame_Sword.blockymodel

2. Organize files

   Create this folder structure in your plugin:

   • Directorymy-plugin/

     • Directoryassets/

       • Directoryitem/

         • MyPlugin_Sword_Flame.json
       • Directorymodel/

         • DirectoryMyPlugin/

           • DirectoryWeapons/

             • DirectorySword/

               • Flame_Sword.blockymodel
               • Flame_Sword_Texture.png
     • manifest.json

3. Copy files to locations

   • Place .blockymodel in the model folder
   • Place .png texture alongside it

Part 5: Create the Item Definition

Create the JSON file that defines your weapon’s behavior:

assets/item/MyPlugin_Sword_Flame.json

{
  "Parent": "Template_Weapon_Sword",
  "TranslationProperties": {
    "Name": "server.items.MyPlugin_Sword_Flame.name"
  },
  "Model": "MyPlugin/Weapons/Sword/Flame_Sword.blockymodel",
  "Texture": "MyPlugin/Weapons/Sword/Flame_Sword_Texture.png",
  "Icon": "Icons/ItemsGenerated/MyPlugin_Sword_Flame.png",
  "Quality": "Rare",
  "ItemLevel": 35,
  "Categories": ["Items.Weapons"],
  "Tags": {
    "Type": ["Weapon"],
    "Family": ["Sword"]
  },
  "Recipe": {
    "TimeSeconds": 5.0,
    "KnowledgeRequired": false,
    "Input": [
      { "ItemId": "Ingredient_Bar_Iron", "Quantity": 8 },
      { "ItemId": "Ingredient_Leather_Light", "Quantity": 4 },
      { "ItemId": "Ingredient_Ember", "Quantity": 6 }
    ],
    "BenchRequirement": [
      {
        "Type": "Crafting",
        "Categories": ["Weapon_Sword"],
        "Id": "Weapon_Bench"
      }
    ]
  },
  "InteractionVars": {
    "Swing_Left_Damage": {
      "Interactions": [{
        "Parent": "Weapon_Sword_Primary_Swing_Left_Damage",
        "DamageCalculator": {
          "BaseDamage": { "Physical": 12 }
        },
        "DamageEffects": {
          "WorldSoundEventId": "SFX_Sword_T2_Impact",
          "LocalSoundEventId": "SFX_Sword_T2_Impact",
          "WorldParticles": [{ "SystemId": "Fire_Impact_Small" }]
        }
      }]
    },
    "Swing_Right_Damage": {
      "Interactions": [{
        "Parent": "Weapon_Sword_Primary_Swing_Right_Damage",
        "DamageCalculator": {
          "BaseDamage": { "Physical": 13 }
        },
        "DamageEffects": {
          "WorldSoundEventId": "SFX_Sword_T2_Impact",
          "LocalSoundEventId": "SFX_Sword_T2_Impact",
          "WorldParticles": [{ "SystemId": "Fire_Impact_Small" }]
        }
      }]
    },
    "Swing_Down_Damage": {
      "Interactions": [{
        "Parent": "Weapon_Sword_Primary_Swing_Down_Damage",
        "DamageCalculator": {
          "BaseDamage": { "Physical": 22 }
        },
        "DamageEffects": {
          "WorldSoundEventId": "SFX_Sword_T2_Impact",
          "LocalSoundEventId": "SFX_Sword_T2_Impact",
          "WorldParticles": [{ "SystemId": "Fire_Impact_Medium" }]
        }
      }]
    },
    "Thrust_Damage": {
      "Interactions": [{
        "Parent": "Weapon_Sword_Primary_Thrust_Damage",
        "DamageCalculator": {
          "BaseDamage": { "Physical": 32 }
        },
        "EntityStatsOnHit": [
          { "EntityStatId": "SignatureEnergy", "Amount": 4 }
        ],
        "DamageEffects": {
          "WorldSoundEventId": "SFX_Sword_T2_Impact",
          "LocalSoundEventId": "SFX_Sword_T2_Impact",
          "WorldParticles": [{ "SystemId": "Fire_Impact_Large" }]
        }
      }]
    },
    "Vortexstrike_Spin_Damage": {
      "Interactions": [{
        "Parent": "Weapon_Sword_Signature_Vortexstrike_Spin_Damage",
        "DamageCalculator": {
          "BaseDamage": { "Physical": 24 }
        },
        "DamageEffects": {
          "WorldSoundEventId": "SFX_Sword_T2_Impact",
          "LocalSoundEventId": "SFX_Sword_T2_Impact",
          "WorldParticles": [{ "SystemId": "Fire_Burst" }]
        }
      }]
    },
    "Vortexstrike_Stab_Damage": {
      "Interactions": [{
        "Parent": "Weapon_Sword_Signature_Vortexstrike_Stab_Damage",
        "DamageCalculator": {
          "BaseDamage": { "Physical": 70 }
        },
        "DamageEffects": {
          "WorldSoundEventId": "SFX_Sword_T2_Impact",
          "LocalSoundEventId": "SFX_Sword_T2_Impact",
          "WorldParticles": [{ "SystemId": "Fire_Explosion" }]
        }
      }]
    },
    "Guard_Wield": {
      "Interactions": [{
        "Parent": "Weapon_Sword_Secondary_Guard_Wield",
        "StaminaCost": { "Value": 8, "CostType": "Damage" }
      }]
    }
  },
  "MaxDurability": 150,
  "DurabilityLossOnHit": 0.18,
  "Particles": [
    {
      "SystemId": "Sword_Fire_Idle",
      "TargetNodeName": "Handle",
      "PositionOffset": { "X": 0.6 },
      "TargetEntityPart": "PrimaryItem"
    }
  ],
  "ItemSoundSetId": "ISS_Weapons_Blade_Large"
}

Understanding the Definition

Let’s break down the key sections:

Inheritance

{
  "Parent": "Template_Weapon_Sword"
}

By inheriting from Template_Weapon_Sword, we get:

• All basic sword attack patterns
• The Vortexstrike signature ability
• Guard/block mechanics
• Proper animation bindings

We only need to override the values we want to change.

Damage Values

{
  "InteractionVars": {
    "Swing_Left_Damage": {
      "Interactions": [{
        "Parent": "Weapon_Sword_Primary_Swing_Left_Damage",
        "DamageCalculator": {
          "BaseDamage": { "Physical": 12 }
        }
      }]
    }
  }
}

Each attack type has its own damage definition. The Parent field inherits the base attack behavior while we override the damage value. The DamageCalculator also supports a Class field (DamageClass) for equipment modifier calculations; if omitted, it defaults to UNKNOWN.

Damage Comparison (Iron Sword vs Flame Sword):

Note

The Iron Sword values below are illustrative examples for comparison purposes, not actual in-game values.

Attack	Iron Sword	Flame Sword
Swing Left	9	12
Swing Right	10	13
Swing Down	18	22
Thrust	26	32
Vortexstrike Spin	19	24
Vortexstrike Stab	56	70

Visual Effects

{
  "DamageEffects": {
    "WorldParticles": [{ "SystemId": "Fire_Impact_Small" }]
  },
  "Particles": [
    {
      "SystemId": "Sword_Fire_Idle",
      "TargetNodeName": "Handle",
      "PositionOffset": { "X": 0.6 },
      "TargetEntityPart": "PrimaryItem"
    }
  ]
}

DamageEffects.WorldParticles: Particles when hitting enemies

Particles: Constant particles on the weapon (the flame effect)

Crafting

{
  "Recipe": {
    "TimeSeconds": 5.0,
    "KnowledgeRequired": false,
    "Input": [
      { "ItemId": "Ingredient_Bar_Iron", "Quantity": 8 },
      { "ItemId": "Ingredient_Leather_Light", "Quantity": 4 },
      { "ItemId": "Ingredient_Ember", "Quantity": 6 }
    ],
    "BenchRequirement": [
      {
        "Type": "Crafting",
        "Categories": ["Weapon_Sword"],
        "Id": "Weapon_Bench"
      }
    ]
  }
}

Requires a Weapon Bench with sword crafting capability. Uses iron bars, leather, and a fire-related ingredient (Ember). Takes 5 seconds to craft.

You can also add "RequiredTierLevel" (integer) to BenchRequirement to restrict the recipe to benches of a certain upgrade tier, and "RequiredMemoriesLevel" (integer, defaults to 1) to the recipe to gate it behind the memories system.

Part 6: Configure Plugin Manifest

Update your manifest.json to include the asset pack:

manifest.json

{
  "Group": "com.example",
  "Name": "MyPlugin",
  "Version": "1.0.0",
  "Description": "Adds the Flame Sword weapon",
  "Authors": [{ "Name": "YourName" }],
  "IncludesAssetPack": true
}

Note

If your plugin includes Java code, add a "Main" field pointing to your entry point class (e.g. "Main": "com.example.myplugin.MyPlugin"). For asset-only plugins with no Java code, Main can be omitted.

The "IncludesAssetPack": true setting tells the server to load assets from the assets/ directory.

Part 7: Add Localization

Create a language file for the weapon name:

assets/languages/en_US/server.lang

# flame sword
items.MyPlugin_Sword_Flame.name = Flame Sword
items.MyPlugin_Sword_Flame.description = A sword imbued with eternal fire. Burns enemies on impact.

Note

.lang files use a flat key = value format, not JSON. Keys are prefixed automatically based on the file path and filename. A file named server.lang in the en_US directory produces the prefix server, so the key items.MyPlugin_Sword_Flame.name resolves to server.items.MyPlugin_Sword_Flame.name at runtime.

Part 8: Test Your Weapon

1. Build your plugin

   Package your plugin JAR with the assets folder included.

2. Install on server

   Place the JAR in your server’s plugins directory.

3. Start the server

   Watch for any asset loading errors in the console.

4. Test in-game

   • Give yourself the weapon: /give @s MyPlugin_Sword_Flame
   • Test all attack types:
     • Left swing
     • Right swing
     • Down swing
     • Thrust
     • Vortexstrike (charge by hitting enemies)
   • Test blocking
   • Verify particles appear
   • Check durability decreases correctly

5. Test crafting

   • Find or spawn a Weapon Bench
   • Gather required materials
   • Craft the sword
   • Verify recipe works correctly

Troubleshooting

Weapon doesn’t appear

Solution

1. Check manifest.json has "IncludesAssetPack": true
2. Verify JSON syntax is valid (use a JSON validator)
3. Check file paths match exactly (case-sensitive)
4. Look for errors in server console during startup

Model looks wrong

Solution

1. Verify .blockymodel exported correctly from Blockbench
2. Check model path in JSON matches actual file location
3. Ensure bone hierarchy is set up correctly
4. Verify texture dimensions are 32px multiples

Attacks don’t work

Solution

1. Verify Parent template name is exact: Template_Weapon_Sword
2. Check InteractionVars names match exactly (case-sensitive)
3. Ensure DamageCalculator structure is correct
4. Look for JSON syntax errors

No particles

Solution

1. Verify particle system IDs exist in the game
2. Check TargetNodeName matches a bone in your model
3. Try using known working particle IDs first (like Torch_Fire)

Damage Balancing Guide

The values below are suggested guidelines for modders, not official game balance data. Use them as a starting point and adjust for your own content.

When creating weapons, follow these guidelines for balanced progression:

Material Tier	Quality	Item Level	Swing Damage	Durability
Wood/Bone	Common	5-10	5-7	40-60
Copper	Common	10-15	7-9	60-80
Iron	Uncommon	15-25	9-12	80-120
Steel	Uncommon	25-35	12-15	100-150
Mithril	Rare	35-50	15-20	150-200
Adamantite	Epic	50-70	20-28	200-300
Legendary	Legendary	70+	28+	300+

Attack Type Damage Multipliers:

• Swing Left/Right: 1.0x base
• Swing Down: 1.8-2.0x base
• Thrust: 2.5-3.0x base
• Signature Spin: 1.8-2.0x base
• Signature Stab: 5.5-6.0x base

Advanced Customization

Adding Signature Visual Effects

To add a charging visual when the signature is ready:

Signature ready particles

{
  "ItemAppearanceConditions": {
    "SignatureEnergy": [
      {
        "Condition": [100, 100],
        "ConditionValueType": "Percent",
        "Particles": [
          {
            "SystemId": "Sword_Fire_Signature_Ready",
            "TargetNodeName": "Handle",
            "PositionOffset": { "X": 0.8 },
            "TargetEntityPart": "PrimaryItem"
          }
        ],
        "ModelVFXId": "Sword_Fire_Glow"
      }
    ]
  }
}

Adding Durability Visual Changes

Show wear as the weapon degrades:

Durability appearance

{
  "ItemAppearanceConditions": {
    "Health": [
      {
        "Condition": [0, 25],
        "Texture": "MyPlugin/Weapons/Sword/Flame_Sword_Damaged_Texture.png",
        "Particles": [{ "SystemId": "Smoke_Light" }]
      },
      {
        "Condition": [26, 50],
        "Texture": "MyPlugin/Weapons/Sword/Flame_Sword_Worn_Texture.png"
      }
    ]
  }
}

Complete File Structure

Your final plugin structure should look like:

• Directorymy-plugin/

  • Directoryassets/

    • Directoryitem/

      • MyPlugin_Sword_Flame.json
    • Directorymodel/

      • DirectoryMyPlugin/

        • DirectoryWeapons/

          • DirectorySword/

            • Flame_Sword.blockymodel
            • Flame_Sword_Texture.png
    • Directorylanguages/

      • Directoryen_US/

        • server.lang
  • Directorysrc/

    • (your Java code)
  • manifest.json

Next Steps

Create More Weapons Try creating a bow or staff using different templates

Item System Learn about item definitions in detail

Blockbench Setup Set up your modeling environment

NPC System Create enemies that drop your weapon

Related

• Blockbench Setup - Tool installation
• Item System Overview - Item fundamentals
• Weapons Reference - Complete weapon documentation
• Plugin Manifest - Asset pack configuration
